A Red Dot Sight That Doesn’t Use Batteries offers a simple alternative to conventional electronic optics. Instead of depending on batteries or rechargeable power, these sights can use fiber-optic technology and tritium to illuminate the reticle in different lighting conditions.
Fiber optics collect available daylight, while tritium provides illumination when ambient light is low. This allows the sight to remain ready without switches, charging, or battery replacement.
Among the notable options are the Meprolight M21, Meprolight M22, and Trijicon RX06, each offering a different combination of reticle design, size, weight, and viewing window.
This guide examines their features, specifications, advantages, disadvantages, and the key factors to consider when choosing a battery-free red dot sight.
“This post contains affiliate links. If you purchase through these links, I may earn a small commission at no extra cost. Learn more here.”
| Meprolight M22 |  |
|
| Meprolight M21 |  |
|
| Trijicon RX06 |  |
|
What Is a Red Dot Sight That Doesn’t Use Batteries?
A Reflex optic, or a red dot sight, that does not require electronic battery or charging. Instead, some models use fiber-optic technology and the element tritium for illumination in various lighting situations.
Tritium is used to illuminate in low-light and at night, while fiber optics are used to gather light that is available for the day.
This means no switching, charging or battery replacement of the sight is required. The main advantage of battery-free red dot sights is their simplicity, automatic illumination and their minimal reliance on electronic components.
How Do Battery-Free Red Dot Sights Work?
Battery-free red dot sights work by using fiber optics and tritium to illuminate the reticle without electrical power. During daylight, the fiber-optic system collects ambient light and directs it toward the reticle, making the aiming point visible.
In low-light or nighttime conditions, tritium provides a self-powered source of illumination. The combination allows the reticle to remain visible as lighting conditions change without batteries, charging, or electronic controls.
Models such as the Meprolight M21, Meprolight M22, and Trijicon RX06 use this type of illumination. However, brightness can vary depending on the surrounding light conditions.
Are Battery-Free Red Dot Sights Reliable?
Yes, battery-free red dot sights can be highly reliable, particularly because they eliminate batteries, charging systems, and many electronic components that can fail.
Models that combine fiber optics and tritium can provide illumination during both daylight and low-light conditions without requiring user intervention.
Their always-on design also means there is no need to remember to activate the sight before use. However, reliability depends on the quality, construction, and illumination system of the individual optic.
Tritium gradually loses brightness over time, while fiber-optic illumination depends on available ambient light. Choosing a rugged, reputable model can improve long-term reliability and performance.
Comparison Table
| Feature | Meprolight M21 | Meprolight M22 | Trijicon RX06 |
|---|---|---|---|
| Type | Battery-free reflex sight | Battery-free reflex sight | Battery-free reflex sight |
| Magnification | 1× | 1× | 1× |
| Illumination | Fiber optic + tritium | Fiber optic + tritium | Fiber optic + tritium |
| Battery required | No | No | No |
| Reticle | 4.3 MOA dot, Triangle, Bullseye, Open X | 3.5/40 MOA Bullseye or 10 MOA Triangle | 12.9 MOA Triangle |
| Reticle color | Amber | Red | Amber |
| Objective/lens | 30 mm | 25 × 20 mm viewing window | 24 mm |
| Weight | 372 g / 13.12 oz | 260 g / 9.2 oz | 119 g / 4.2 oz |
| Mount | Picatinny adapter/options | Picatinny quick-release | Various adapters |
| Night illumination | Tritium | Tritium | Tritium |
| Main strength | Large field of view | Compact, modern design | Very lightweight |
| Main drawback | Heavy and bulky | Still relatively large compared with micro red dots | Large 12.9 MOA triangle |
| Best for | Wide field of view & rugged use | Overall versatility | Lightweight setup |
Red Dot Sight That Doesn’t Use Batteries

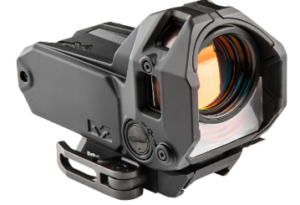

1) Meprolight M22
Price on Amazon & Price on Opticsplanet
The Meprolight M22 is a battery free reflex red-dot sight for rifles and carbines. The M22 does not need batteries or charging as it is unlike electronic red dots.
It switches between fiber-optic light during the day and in-built Swiss tritium vials at night, depending on the light level. It makes the M22 easy and always ready to use for those seeking to avoid the need for batteries.
Has 1× magnification and offers a choice of a 3.5/40 MOA Bullseye or 10 MOA Triangle reticle. The viewing window is 1×0.8 (25×20 mm) and the sight is about 9.2 oz (260 g).
Offers 1 MOA windage and elevation and has a total of ±60 MOA adjustment, and it features a Picatinny MIL-STD-1913 quick release mount. It is also water-resistant to 20m for 1 hour and can be operated between the range of -40°C to +60°C.
Key specifications
- Type: Self-illuminated reflex red-dot sight
- Magnification: 1×
- Power: Fiber optic (day) + tritium (night)
- Battery: None
- Reticles: 3.5/40 MOA Bullseye or 10 MOA Triangle
- Reticle colors: Red or Amber, depending on configuration
- Window: 25 × 20 mm
- Weight: 260 g / 9.2 oz
- Adjustment: 1 MOA per click
- Total adjustment: ±60 MOA
- Mount: Picatinny quick-release
- Water resistance: 20 m for 1 hour
- Tritium warranty: 10 years
Pros
- No batteries required
- Automatic illumination adjustment
- Works in both daylight and darkness
- Rugged construction
- Compatible with night-vision devices and magnifiers
- Quick-release Picatinny mount
- Simple operation with no electronic controls
- 10-year tritium illumination warranty
Cons
- Heavier than many modern micro red dots

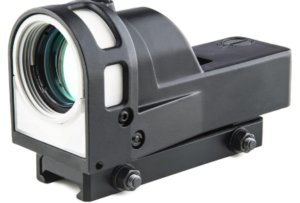

2) Meprolight M21
Price on Amazon & Price on Opticsplanet
The Meprolight M21 is a genuine battery-free red-dot/reflex sight for rapid target acquisition, both with one and both eyes open.
Designed for the Israel Defense Force, a fiber-optic collector is used during the day and a self-powered tritium light source is employed at night.
There are no batteries, switches or electronic power controls to maintain or operate in the transition between the two kinds of illumination.
M21 has a 1× magnification and a large 30 mm lens, providing a wide field of view. Available in a variety of reticle options: 4.3 MOA, 5.5 MOA, Triangle, Bullseye and Open X.
According to the current manufacturer specifications the weight with the Picatinny adapter is 372 g (13.12 oz) and the dimensions with the Picatinny adapter are 114 × 55 × 70 mm. It has been designed for harsh environments and meets MIL-STD-810 specifications.
Key specifications
- Type: Day/night self-illuminated reflex red dot
- Magnification: 1×
- Lens diameter: 30 mm
- Illumination: Fiber optic + tritium
- Battery: None
- Reticles: 4.3 MOA, 5.5 MOA, Triangle, Bullseye, Open X
- Field of view: Unlimited with both eyes open
- Eye relief: 10–600 mm
- Dimensions: 114 × 55 × 70 mm with Picatinny adapter
- Weight: 372 g / 13.12 oz with Picatinny adapter
- Temperature range: −40°F to 140°F
- Standard: MIL-STD-810
- Tritium warranty: 10 years
Pros
- No batteries required
- Always-on operation
- Automatic day/night illumination
- Large 30 mm viewing window
- Wide field of view
- Rugged construction
- Multiple reticle options
- Designed for use in demanding conditions
- No switches or electronic controls to fail
Cons
- Relatively heavy compared with many modern micro red dots
3) Trijicon RX06
Price on Amazon & Price on Opticsplanet
The Trijicon RX06 is a true battery-free reflex/red-dot sight intended to be used to acquire targets quickly under bright, low-light, and no-light conditions.
Unlike conventional lights, it features Trijicon’s fiber-optic and tritium illumination system, eliminating the need for batteries, charging or electronic controls.
The fiber optics automatically capture the available daylight to light up the reticle, and tritium illuminates the reticle when the light is off. The RX06 is set up for two-eyes open shooting, and is ideal for fast target acquisition.
Features a unique 12.9 MOA amber triangle reticle instead of the typical circular dot. The large triangle should help to give a quick recognition aid and also should give a precise aiming reference.
It offers a 1× magnification, 24 mm objective lens, unlimited eye relief and a rugged cast-aluminum housing. When the mount is not attached, it is compact and weighs around 4.2 oz (119 g).
Key specifications
- Type: Battery-free reflex/red-dot sight
- Magnification: 1×
- Objective lens: 24 mm
- Reticle: 12.9 MOA amber triangle
- Illumination: Fiber optics + tritium
- Battery: None
- Eye relief: Unlimited
- Adjustment: 1 MOA per click
- Windage/elevation: 60 MOA total travel
- Weight: 4.2 oz / 119 g, without mount
- Length: 4.3 in / 10.9 cm
- Mounting options: Various adapters, depending on model
- Construction: Rugged aluminum housing
- Water resistance: Yes
Pros
- No batteries required
- Fiber-optic/tritium illumination works day and night
- Automatic illumination
- Lightweight compared with many larger reflex sights
- Large, highly visible triangle reticle
- Unlimited eye relief
- Designed for both-eyes-open target acquisition
- Rugged aluminum construction
- Multiple mounting options
- Made in the USA
Cons
- 12.9 MOA triangle is relatively large, making it less suitable for precision at longer distances
Meprolight M21 vs M22
Both the Meprolight M21 and the M22 are battery-less reflex sights featuring tritium and fiber optics illumination of the reticle without the need for batteries or charging.
M21 is the older, tried and true model, and is equipped with a 30 mm lens and a variety of reticles such as 4.3 MOA dot, 5.5 MOA dot, triangle, bullseye, and Open X. It is about 372 g with the Picatinny adapter.
M22 is a newer design, and is more compact and light with a weight of approximately 260 g (9.2 oz.). It features a 3.5/40 MOA reticle with a Bullseye/Target and a 10 MOA Target reticle, along with a 25 × 20 mm viewing window. (meprolight.com)
Benefits of M21:
- Larger lens.
- Various reticles.
- A solid design and a wide field of view.
Benefits of M22:
- Light and small.
- Modern design and quick release.
Trijicon RX06 vs Meprolight M22
Trijicon RX06 and Meprolight M22 are both battery-less reflex sights that function in both the daylight and low-light environment using tritium.
There are more reticle options with the RX06, which features a 12.9 MOA amber triangle reticle, and the M22 that has a 3.5/40 MOA Bullseye or 10 MOA Triangle reticle. The M22 is 1× and has a weight of about 260 g (9.2 oz).
The more compact and modern M22 features automatic reticle brightness adjustment, and a viewing window of 25 × 20 mm.
This also features a Picatinny quick release mount. The 10-year tritium illumination warranty offers added longevity.
RX06, on the other hand, is noted for its plain, rugged appearance, and the use of a large triangle reticle that is designed for speedy acquisition of targets.
In general, the M22 is more versatile and compact in use, and the RX06 might be of interest to those looking for a basic, high-contrast triangle reticle.
Factors to Consider When Choosing Red Dot Sight That Doesn’t Use Batteries
When choosing a battery-free red dot sight, it is important to look beyond the absence of batteries.
- Illumination system
Consider how the sight produces its aiming-point illumination. Fiber optics are effective in daylight, while tritium provides illumination in darkness. A good battery-free sight should transition automatically between these systems without requiring switches or charging.
- Reticle type and size
The reticle has a major effect on how quickly and precisely you can acquire the aiming point. Options such as a dot, triangle, bullseye, or open-X offer different sight pictures. Smaller dots generally provide a finer aiming reference, while larger reticles can be easier to see and acquire quickly.
- Brightness performance
Because these sights depend on ambient light and tritium rather than electronic brightness controls, consider how well the reticle remains visible across different lighting conditions. The M22, for example, automatically adjusts its illumination according to ambient light.
- Size and weight
Weight is particularly important if the sight will be carried for extended periods. The M21 weighs approximately 372 g with its Picatinny adapter, while the M22 is considerably lighter at about 260 g.
- Durability
Look for a rugged construction capable of handling shock, weather, and demanding environments. The M21, for example, is designed to meet MIL-STD-810 requirements, while the M22 is also designed for harsh environmental conditions.
- Field of view
A large viewing window and wide field of view can make it easier to locate the reticle quickly. The M21 uses a 30 mm lens and is designed for use with both eyes open.
- Mounting compatibility
Check that the sight is compatible with the mounting system on your platform. For example, the M22 uses a MIL-STD-1913 Picatinny quick-release mount, while the M21 is available with different mounting options.
- Tritium lifespan and warranty
Tritium gradually loses brightness over time, so check the manufacturer’s warranty and expected service life. Meprolight currently provides a 10-year warranty on tritium illumination for the M21 and M22.
- Intended application
Finally, consider what you need the optic for. A lightweight sight may be preferable where portability matters, while a larger sight with a wide field of view may be more appropriate when rapid target acquisition is the priority. The M21 is particularly suited to users seeking a rugged, wide-field battery-free reflex sight, whereas the M22 offers a more compact design.
FAQs
- What is a red dot sight that doesn’t use batteries?
A battery-free red dot sight is a reflex optic that uses fiber optics and/or tritium instead of an electronic battery. Fiber optics collect ambient light during the day, while tritium provides illumination in low-light and nighttime conditions.
- How does a battery-free red dot sight work?
These sights typically combine fiber-optic illumination for daylight with tritium illumination for darkness. The illumination changes automatically according to the available ambient light, eliminating the need for batteries, charging, or electronic controls.
- What are the main advantages of a battery-free red dot sight?
The main advantages are always-on operation, no battery replacement or charging, simple operation, and reduced dependence on electronics. They can be particularly attractive to users who want an optic that is ready whenever it is needed.
Conclusion
Choosing the best red dot sight that doesn’t use batteries ultimately depends on your priorities, because each of the three models has different strengths.
Meprolight M21 is a strong option for those who value a large viewing window, wide field of view, multiple reticle choices, and a proven rugged design.
Meprolight M22 provides a more compact and lighter alternative while retaining the advantages of fiber-optic and tritium illumination, making it a well-balanced choice for many users.
Trijicon RX06 is particularly attractive for those who prioritize low weight and a highly visible triangle reticle.
All three eliminate the need for battery replacement or charging, but their reticle designs and physical dimensions differ considerably.
When making a choice, consider reticle type, illumination, weight, durability, field of view, mounting compatibility, tritium lifespan, and intended application.
For overall versatility, the M22 stands out, while the M21 and RX06 remain compelling alternatives.
