Choosing a red dot sight is only part of creating an effective optic setup; knowing where your red dot sight should be is equally important.
Proper placement can influence how quickly you find the aiming point, how comfortable the sight picture feels, and how consistently the optic works with your firearm.
Red dot sights are available in various sizes, designs, and mounting configurations for handguns, rifles, AR-15s, shotguns, and competition setups.
In this guide, we’ll explain where a red dot should be positioned, how mount height and placement affect your setup, and what to consider when choosing the right red dot sight and mount for your needs.
“This post contains affiliate links. If you purchase through these links, I may earn a small commission at no extra cost. Learn more here.”
Where Should Your Red Dot Sight Be
Your red dot sight should be positioned where it provides a clear, consistent sight picture while remaining securely mounted to your firearm. The ideal location depends on the firearm, optic, mount, and intended use.
On rifles such as an AR-15, the red dot is commonly mounted on a compatible section of the upper receiver rail. On handguns, it is typically installed into a dedicated optic cut or compatible mounting plate.
Mount height and position can also affect how naturally you acquire the dot. Always follow the optic and firearm manufacturer’s mounting instructions, and confirm compatibility before installing or purchasing a red dot sight.
Choosing a Red Dot Sight for Your Setup
| For Handguns: Holosun EPS Carry |  |
|
| For Rifles: Aimpoint Micro T-2 |  |
|
| For AR-15s: Holosun HS510C |  |
|
| For Shotguns: Vortex Viper |  |
|
| For Competition: Trijicon SRO |  |
|

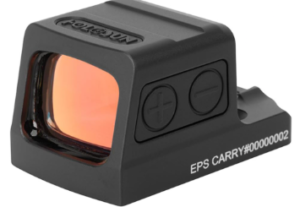

For Handguns: Holosun EPS Carry
Check Price on Amazon & Check Price on Opticsplanet
The Holosun EPS Carry is a small enclosed emitter red dot made specifically for small handguns.
Enclosed optical design gives additional protection to the emitter from dust, debris, and the elements, making it a good option for those wanting a small optic with additional protection.
EPS Carry may be appropriate when a small, low-profile optic is needed along with good visibility of the sight picture.
With a compact optic, one can achieve a slim profile of the handgun while having an illuminated aiming point. Just like any other optic used on a handgun, the buyer should ensure the firearm has a suitable optic cut.
Key Specs & Features
- Compact enclosed-emitter design
- Designed for smaller handgun platforms
- Multiple brightness settings
- Solar backup system on compatible models
- Shake Awake technology
- Durable aluminum housing
Pros
- Compact and lightweight
- Enclosed emitter offers added protection
- Long battery life
- Good choice for smaller pistols
Cons
- Smaller window than some competition optics
- Compatibility depends on the handgun and mounting system
For Rifles: Aimpoint Micro T-2
Check Price on Amazon & Check Price on Opticsplanet
This is a small and durable red dot, which has already earned recognition because of its durability, compactness, and long battery life.
For rifle applications, this type of red dot offers a simple aiming option without adding any bulkiness to the gun because of magnification optics. Being compact, this type of optic is easily combined with different types of mounting.
As far as we talk about the best placement of the red dot on a rifle, one example of such a compact and lightweight optic is the Micro T-2.
However, even in this case, it can be mounted on a convenient rail and adjusted in order to have a comfortable sight picture.
Key Specs & Features
- Compact tube-style design
- 2 MOA red dot
- Long battery life
- Rugged construction
- Multiple brightness settings
- Compatible with numerous aftermarket mounts
Pros
- Excellent durability
- Compact and lightweight
- Very long battery life
- Clear, simple aiming point
Cons
- Premium price

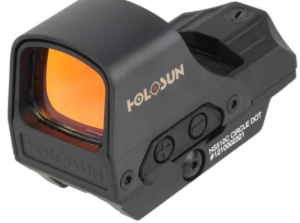

For AR-15s: Holosun HS510C
Check Price on Amazon & Check Price on Opticsplanet
The Holosun HS510C is one of the best open reflex red dots that suits the needs of people who want a wide viewing window on their AR-15 rifle.
HS510C will suit us well in order to show the necessity of finding the right place and right height for mounting the sight.
On the AR-15 rifle, the red dot must be mounted tightly on the rail. Besides, it should be installed in such a place where the person can always have a proper sight picture.
In case there are some other sights, for example, a magnifier, it should be taken into account.
Key Specs & Features
- Open-reflex design
- Large viewing window
- Multiple reticle options
- Solar-assisted power system
- Shake Awake technology
- Lightweight aluminum housing
Pros
- Large viewing window
- Flexible reticle choices
- Solar backup
- Lightweight for its size
Cons
- Open emitter is more exposed than an enclosed design

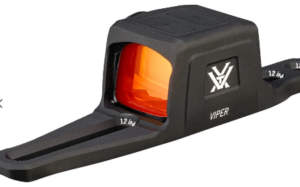

For Shotguns: Vortex Viper
Check Price on Opticsplanet
The Vortex Viper Shotgun Enclosed Micro Red Dot is a good choice for shotguns, especially those who prefer a compact red dot that is optimized specifically for shotgun use.
As compared to conventional red dots, this model of the optic is specifically designed for shotguns and comes with an enclosed micro design. The Vortex company has also made available multiple reticle choices for this specific model. Vortex Optics
For an article concerning placement of red dot sights, Viper is a good example, since shotgun optics must fit in with the shooting position of the shooter and be integrated easily into his/her shooting sight picture.
Using a compact red dot will be able to provide a small size advantage in terms of setting up the sight for the user.
Key Features
- Enclosed micro red-dot design
- Shotgun-specific model
- 3 MOA dot option
- Multi-reticle options
- Compact form factor
- Available in red and green-dot versions Vortex Optics
Pros
- Specifically offered for shotgun applications
- Enclosed design provides additional protection for the emitter
- Multiple reticle choices
- Compact and streamlined
Cons
- Premium price compared with basic red dots

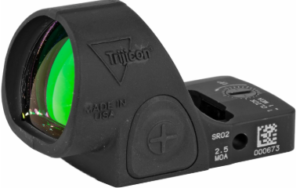

For Competition: Trijicon SRO
Check Price on Amazon & Check Price on Opticsplanet
Trijicon SRO has been made keeping in view the need for quick target acquisition and the requirement of a large viewing area, which is what makes it a very interesting choice for the competition setup.
The round viewing window of the scope provides the shooter with more space for the illumination dot, which can help during the quick switching from one target to another.
As far as the competition shooters are concerned, the positioning of the red dot plays a very significant role as it requires the scope to complement the presentation and sight picture of the shooter.
Key Specs & Features
- Large circular viewing window
- Available with different dot sizes
- Adjustable brightness
- Designed for rapid target acquisition
- Durable construction
- Designed for pistol applications
Pros
- Excellent visibility
- Large viewing window
- Good for fast target acquisition
- Multiple dot-size options
Cons
- Premium price
- Larger than many compact pistol optics
What Is a Red Dot Sight?
The red dot sight is a non-optic device that relies on an illuminated dot sight for helping the shooter to acquire a sight picture.
Rather than aligning the two front and rear sights, the shooter just needs to put the illuminated dot above his intended point of aim.
The red dot sights come in varying shapes and sizes and can therefore fit on many types of firearms. There are open emitter red dots and enclosed emitter red dots, with the latter being resistant to environmental conditions.
Where Should Your Red Dot Sight Be?
A good placement for the red dot sight may be defined based on the gun, the type of its mount, the optics, and the manner in which the gun will be used.
The objective here is not to use a universally recommended position but to achieve consistency in your sight picture while maintaining a secure installation of the optics.
In the case of the rifle, the red dot is installed on a suitable part of the mount rail, while on a handgun the optics can be fitted on a slide cut designed for such installation.
How Far Forward or Back Should a Red Dot Be?
Where the red dot must be placed ahead or behind is primarily determined by the gun and the mounting method.
In contrast to regular telescopic sights, most of the time, there is no need to have a certain eye relief when using a red dot sight, which gives more options for placing it.
For rifles, the sight can be placed wherever it will be comfortable for you without interfering with other devices. If
f a magnifier is going to be used, it should be considered too. For pistols, the sight is typically placed at a particular place instead of being positioned freely.
How High Should a Red Dot Sight Be?
Height of the red dot sight means how high or low the sight is above the firearm barrel. The correct height depends on the particular firearm, mount type, and the configuration being chosen.
On the rifle, varying heights of the mount could give a different sight picture and could be chosen to accommodate the backup iron sights or any other accessories.
Some examples of configurations that could be used are the absolute and lower third co-witness configurations.
On the handgun, the red dot sight will sit much lower than on the rifle since it is mounted using the optic cut or mounting plate.
Where Should a Red Dot Be on a Handgun?
A red dot, in a handgun setup, is typically placed at an optic cut that exists on the slide, or it is mounted through a mounting plate or adapter that fits.
In contrast to a rifle, where one can shift the position of an optic freely forward and backward, in a handgun, this is not possible, because the position is dictated by the mounting system used on the weapon.
The idea is to ensure that the optic is mounted in such a way that the shooter will have a sight picture while presenting the weapon.
Where Should a Red Dot Be on an AR-15?
On an AR-15, a red dot is typically mounted on the rifle’s upper receiver rail or another compatible mounting position specified by the manufacturer.
The optic should be placed where the shooter can obtain a consistent sight picture without interfering with the charging handle or other equipment. Mount height is also important, particularly if the rifle uses backup iron sights or a magnifier.
A compact optic such as the Aimpoint Micro T-2 can provide a streamlined setup, while the Holosun HS510C offers a larger viewing window.
The best position ultimately depends on the mount, accessories, shooting position, and the specific configuration of the rifle.
How to Choose the Right Red Dot Sight and Mount
Selecting a good red dot sight and mount depends on the compatibility between both the items and your firearm and its uses.
First, you should examine the compatibility of the optic and the sight with your firearm or your mounting system. You need to ensure that the size of the optic, its plate, rail, and screw pattern are compatible with the weapon.
Secondly, you should also consider the size of the optic and viewing window of the optical sight. A smaller optic is suitable for a handgun, while a large viewing window is helpful in competitions or some rifle configurations.
The mount height is another consideration due to the effect of the mount height on your sight picture and ability to install a backup sight or accessory.
Battery life, size of the reticle, brightness levels, durability, and weather resistance are also important features. In case you have a rifle or an AR-15, you should consider if you will attach a magnifier in the future.
FAQs
- Where should a red dot sight be positioned?
The ideal position depends on the firearm and mounting system. On rifles, the optic should be placed on a compatible rail where it provides a clear, consistent sight picture. On handguns, it is generally installed in the firearm’s designated optic cut or compatible mounting plate.
- Does a red dot sight need to be close to your eye?
No. Red dot sights generally have unlimited eye relief, so they do not need to be positioned at one specific distance from your eye. However, the optic should be positioned where you can comfortably and consistently see the aiming point.
- How high should a red dot sight be mounted?
The appropriate height depends on the firearm, optic, mount, and overall setup. Rifle users may choose different mount heights depending on whether they want to use backup iron sights or a magnifier. Always select a mount designed for your specific configuration.
Final Thoughts
Finding the right position for your red dot sight is an important part of creating a comfortable and consistent optic setup.
The ideal placement depends on your firearm, mounting system, optic design, and intended use. Whether you are choosing a compact sight for a handgun, a durable optic for a rifle, or a larger-window model for competition, compatibility should always come first.
Consider the optic’s footprint, mount height, viewing window, battery life, and overall durability before making your choice.
Most importantly, follow the manufacturer’s mounting instructions and verify compatibility with your specific firearm. With the right optic and mount, you can create a setup suited to your needs.
